Lashing Systems

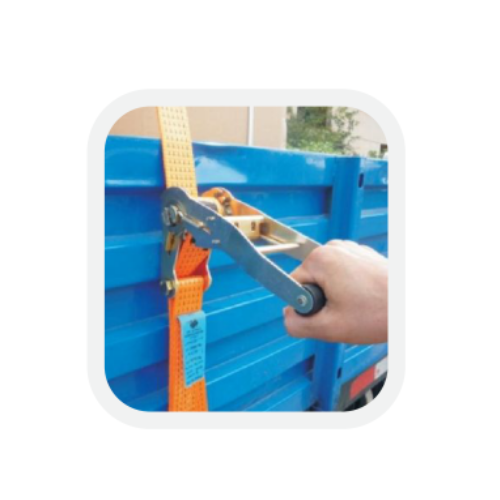

Cargo Lashings
-
Produced from high tensile polyester yarns.
-
Low elongation, wear-resistant, long-life strap material(100% polyester).
-
Various end fittings are available to suit specific lashing needs.
-
In accordance with DIN 60060 and EN 12195-2.
| Code | Width | LGF | LGL | LG | STF SHF=50 daN |
Lashing Capacity | |
|---|---|---|---|---|---|---|---|
| ↔ | ⎍ | ||||||
| CLB2/RE/1/0110 | 25mm | 0.5mtr | 9.5mtr | 10mtr | 200 daN | 1000 daN | 2000 daN |
| CLB5/RE/2/0210 | 50mm | 0.5mtr | 9.5mtr | 10mtr | 320 daN | 2500 daN | 5000 daN |
| CLB5/RE/2/0212 | 50mm | 0.5mtr | 11.5mtr | 12mtr | 320 daN | 2500 daN | 5000 daN |
| CLB5/RE/2/0215 | 50mm | 0.5mtr | 14.5mtr | 15mtr | 320 daN | 2500 daN | 5000 daN |
| CLB10/RE/3/0310 | 75mm | 0.5mtr | 9.5mtr | 10mtr | 720 daN | 5000 daN | 10000 daN |
| CLB10/RE/3/0312 | 75mm | 0.5mtr | 11.5mtr | 12mtr | 720 daN | 5000 daN | 10000 daN |
| CLB10/RE/3/0315 | 75mm | 0.5mtr | 14.5mtr | 15mtr | 720 daN | 5000 daN | 10000 daN |
| CLB12/RE/4/0410 | 100mm | 0.5mtr | 9.5mtr | 10mtr | 820 daN | 6000 daN | 12000 daN |
| CLB12/RE/4/0412 | 100mm | 0.5mtr | 11.5mtr | 12mtr | 820 daN | 6000 daN | 12000 daN |
| CLB12/RE/4/0415 | 100mm | 0.5mtr | 14.5mtr | 15mtr | 820 daN | 6000 daN | 12000 daN |
