Cable

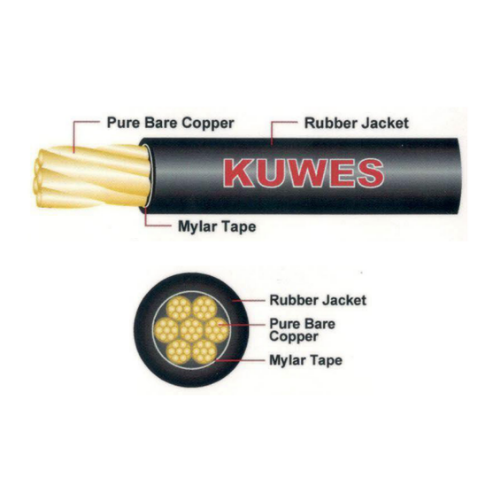

Welding Cable
- Kuwes Brand - Made in Taiwan
- Rubber Welding Cable - Regular Quality & Super Flexible
- Single Insulation: High Grade Synthetic Rubber / Neoprene (Black Color)
- Conductor: 100% Annealed Pure Copper Strands for maximum conductivity and flexibility
- Resistant to heat, oil, grease, abrasion, UV radiation, and weather extremes
- Operating Temperature Range: -25°C to +90°C
- Standard: Conforms to IEC 60245-6 / BS 638 Part 4
| Item Code | Size (mm²) | Conductor Stranding (No./mm) | Nominal Thickness of Insulation (mm) | Approx. Overall Diameter (mm) | Current Rating (Amps 100% Duty Cycle) |
|---|---|---|---|---|---|
| RWC-16 | 16 mm² | 512 / 0.20 | 2.0 mm | 10.5 mm | 135 A |
| RWC-25 | 25 mm² | 798 / 0.20 | 2.0 mm | 11.8 mm | 180 A |
| RWC-35 | 35 mm² | 1121 / 0.20 | 2.0 mm | 13.2 mm | 225 A |
| RWC-50 | 50 mm² | 1596 / 0.20 | 2.2 mm | 15.4 mm | 285 A |
| RWC-70 | 70 mm² | 2214 / 0.20 | 2.4 mm | 17.8 mm | 355 A |
| RWC-95 | 95 mm² | 2997 / 0.20 | 2.6 mm | 20.2 mm | 430 A |
| RWC-120 | 120 mm² | 3800 / 0.20 | 2.8 mm | 22.5 mm | 500 A |
