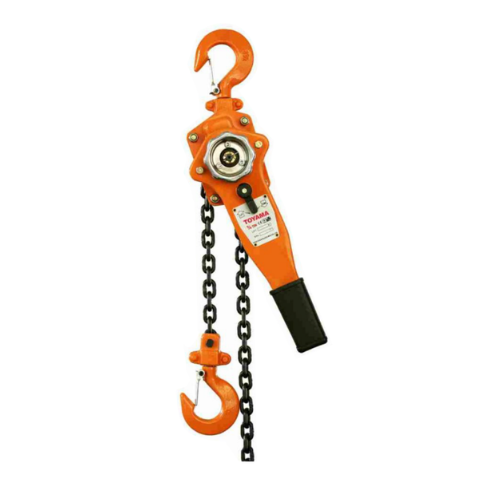

Lever Hoist / Lever Block
-
Automatic Double Pawl Breaking System.
-
Asbestos Free Friction Disc.
-
Industrial Powder Coating meet RoHS requirement.
-
One step operation for free wheel.
-
1500 Cycles lift test, Meet JBT7334, EN13157, ANSI B30. 16, AS 1418 Standards.
| Model | HSH616-0.75 | HSH616-1.5 | HSH616-3 | HSH616-6 | HSH616-9 | |
|---|---|---|---|---|---|---|
| Capacity | tons | 0.75 | 1.5 | 3.0 | 6.0 | 9.0 |
| Standard lift | m | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Running test load | KN | 11.2 | 22.5 | 45 | 75 | 112.5 |
| Effort required to lift rated load | N | 140 | 220 | 320 | 340 | 360 |
| Strands of load chain | 1 | 1 | 1 | 2 | 3 | |
| Diameter of load chain | mm | 6 | 8 | 10 | 10 | 10 |
| Dimensions (mm) |
A | 145 | 175 | 195 | 195 | 195 |
| B | 86 | 100 | 115 | 115 | 115 | |
| C | 134 | 150 | 190 | 242 | 307 | |
| D | 38 | 48 | 50 | 65 | 81 | |
| H | 340 | 380 | 490 | 620 | 700 | |
| L | 285 | 410 | 410 | 410 | 410 | |
| K | 27 | 36 | 38 | 48 | 54 | |
| Net weight | kg | 9.5 | 11.5 | 18.5 | 27.5 | 46 |
| Packing measurement | cm | 37.5X16X18 | 52X17X22 | 55X18.5X22.5 | 57X21X23 | 60X42X28 |
| Extra weight per metre of Extra lift | kg | 0.8 | 1.4 | 2.2 | 4.4 | 6.6 |
