Lifting Equipment

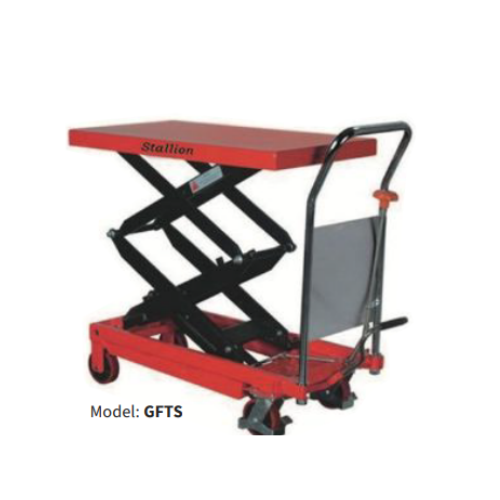

Scissor Lift Table
-
1 year warranty.
-
Easy action foot operated hydraulic lift for raising table top to desired level.
-
Hand operated table descent control.
-
Regenerative braking function to reduce the operation cost.
-
Valuable material handling equipment for use as a feeding table on assembly line.
| ITEM | UNIT | GTF | GTFB | GTFS |
|---|---|---|---|---|
| CAPACITY | KG | 300 / 500 | 750 / 1000 | 350 / 680 |
| MAX.LIFTING HEIGHT | MM | 900 | 1000 | 1300 |
| MIN.TABLE HEIGHT | MM | 290 | 390 | 360 |
| TABLE SIZE | MM | 815X510X50 | 1000X510X55 | 910X510X50 |
| OVERALL LENGTH | MM | 885 | 1060 | 980 |
| WHEEL TYPE | PU | |||
| WHEEL SIZE | MM | Φ 125X50 | Φ 150X50 | Φ 125X50 |
| PEDAL CYCLES TO MAX HEIGHT | ⩽40 | ⩽55 | ⩽60 | |
| SERVICE WEIGHT | KG | 75 / 85 | 115 | 105 / 185 |
| QTY./20’CONTAINER | PCS | 120 | 115 | 110 |
| CARTON SIZE | MM | 960X530X420 | 1190X630X460 | 1010X530X390 |
