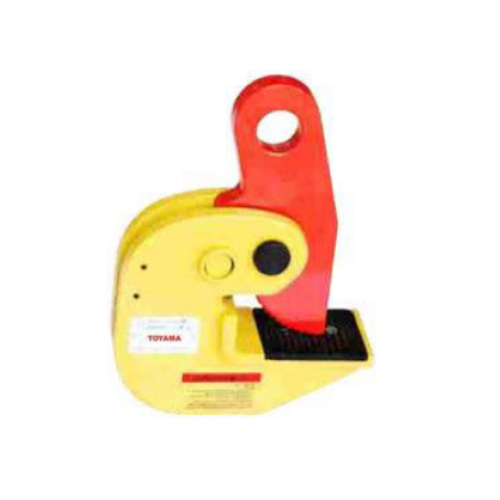

Horizontal Lifting Clamp
-
Europe model.
-
Suitable for lifting and horizontal transfer of steel plates and steel structures.
-
Capacity: 0.8-16T.
-
Made of high-quality low-carbon alloy steel.
-
The working load limit is the maximum load when the clamp are used in pairs with a lift of 60°. In lifting operation should be used in pairs or multiples.
| Model | Capacity/pair (kg) |
Test Load (kg) |
Opening Size (mm) |
Net Weight (kg) |
|---|---|---|---|---|
| PPD-0.8 | 800 | 1600 | 0-25 | 2.5 |
| PPD-1.0 | 1000 | 2000 | 0-30 | 3.5 |
| PPD-1.6 | 1600 | 3200 | 0-30 | 4.0 |
| PPD-2.0 | 2000 | 4000 | 0-40 | 5.0 |
| PPD-3.2 | 3200 | 6400 | 0-45 | 6.0 |
| PPD-4.0 | 4000 | 8000 | 0-50 | 6.5 |
| PPD-5.0 | 5000 | 10000 | 0-55 | 7.5 |
| PPD-6.0 | 6000 | 12000 | 0-65 | 10.5 |
| PPD-6.0A | 6000 | 12000 | 0-130 | 22 |
| PPD-8.0 | 8000 | 12000 | 0-100 | 25 |
| PPD-10 | 10000 | 15000 | 0-125 | 33 |
| PPD-16 | 16000 | 24000 | 0-150 | 52 |
