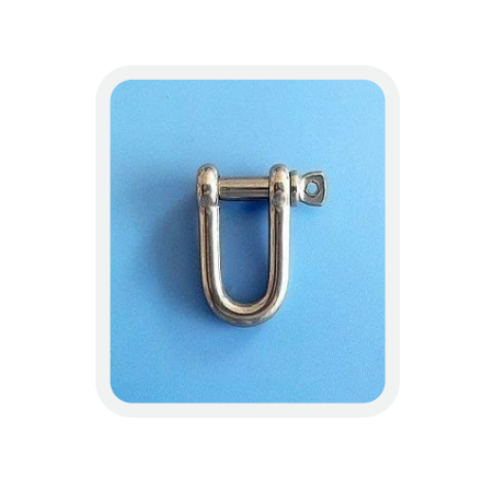

Stainless Steel Shackle
- Marine Grade AISI 304 / AISI 316 Stainless Steel Dee and Bow Shackles
- High polished mirror finish with exceptional aesthetic appearance and zero rust formation
- Resistant to marine seawater, harsh chemical acids, food processing environments, and moisture
- Available in Screw Pin Dee, Screw Pin Bow, and Key Pin formats
- Laser etched with size and stainless steel grade
| ITEM NO | SIZE | A | B | C | D | E | W.L.L | M.L.L | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | Eu | JIS | Eu | JIS | Eu | JIS | Eu | JIS | Eu | JIS | Ton | Ton | |
| LK0063-A/B0004 | 4 | 16 | 14 | 8 | 8 | 8 | 8 | 4 | 4 | 4 | 4 | 0.15 | 0.15 |
| LK0063-A/B0005 | 5 | 20 | 16 | 10 | 10 | 10 | 10 | 5 | 5 | 5 | 5 | 0.24 | 0.24 |
| LK0063-A/B0006 | 6 | 24 | 22 | 12 | 12 | 12 | 12 | 6 | 6 | 6 | 6 | 0.346 | 0.346 |
| LK0063-A/B0008 | 8 | 32 | 27 | 16 | 16 | 16 | 16 | 8 | 8 | 8 | 8 | 0.6 | 0.6 |
| LK0063-A/B0010 | 10 | 40 | 31 | 20 | 20 | 20 | 20 | 10 | 10 | 10 | 10 | 1.16 | 1.16 |
| LK0063-A/B0012 | 12 | 48 | 40 | 24 | 24 | 24 | 24 | 12 | 12 | 12 | 12 | 1.40 | 1.40 |
| LK0063-A/B0014 | 14 | 56 | 46 | 28 | 28 | 28 | 28 | 14 | 14 | 14 | 14 | 2.00 | 2.00 |
| LK0063-A/B0016 | 16 | 64 | 52 | 32 | 32 | 32 | 32 | 16 | 16 | 16 | 16 | 2.65 | 2.65 |
| LK0063-A/B0018 | 18 | 72 | 58 | 36 | 36 | 36 | 36 | 18 | 18 | 18 | 18 | 3.00 | 3.00 |
| LK0063-A/B0020 | 20 | 76 | 64 | 40 | 40 | 40 | 40 | 20 | 20 | 20 | 20 | 3.50 | 3.50 |
| LK0063-A/B0022 | 22 | 88 | 75 | 44 | 44 | 44 | 44 | 22 | 22 | 22 | 22 | 4.05 | 4.05 |
| LK0063-A/B0025 | 25 | 100 | 83 | 50 | 50 | 50 | 50 | 25 | 25 | 25 | 25 | 5.00 | 5.00 |
| LK0063-A/B0028 | 28 | 112 | 96 | 56 | 56 | 56 | 56 | 28 | 28 | 28 | 28 | 7.00 | 7.00 |
| LK0063-A/B0032 | 32 | 128 | 114 | 64 | 64 | 64 | 64 | 32 | 32 | 32 | 32 | 8.00 | 8.00 |
| LK0063-A/B0036 | 36 | 144 | 116 | 72 | 72 | 72 | 72 | 36 | 36 | 36 | 36 | 8.00 | 8.50 |
| LK0063-A/B0038 | 38 | 152 | 152 | 76 | 76 | 76 | 76 | 38 | 38 | 38 | 38 | 10.00 | |
