| Model | NHSS0.8 | NHSS1.6 | NHSS3.2 | NHSS5.4 | |
|---|---|---|---|---|---|
| Rated Capacity | tons | 0.8 | 1.6 | 3.2 | 5.4 |
| Pulling Capacity | tons | 1.2 | 2.4 | 4.8 | 8.1 |
| Rated Forward Travel | mm | ≧ 52 | ≧ 55 | ≧ 28 | ≧ 25 |
| Efficient Length of Forward handle | mm | 825 | 1200 | 1200 | 1200 |
| Drive Step | 1 | 1 | 2 | 2 | |
| Rope Diameter | mm | 8.3 | 11 | 16 | 20 |
| Standard Length of Rope | m | 20 | 20 | 20 | 20 |
| Net Weight | Kg | 16 | 24 | 32 | 90 |
| Rated Forward Hand Power | N | ≦ 341 | ≦ 400 | ≦ 438 | ≦ 550 |
| Max.Overall Size | mm | 426x64x238 | 545x97x284 | 660x98x325 | 930x390x150 |
-
Browse Products
View All
Cable
1 ProductsView AllChains
3 ProductsView AllDewatering
1 ProductsView AllFittings
4 ProductsView AllGasket Sheets
4 ProductsView AllKolor Kut Products
3 ProductsView AllLashing Systems
7 ProductsView AllLifting Equipment
16 Products
Chain Block View Product →
Drum Lifter View Product →
Electric Chain Hoist View Product →
HAND PALLET TRUCK - CBG-I View Product →
HAND PALLET TRUCK - HPW View Product →
Hand Puller View Product →
Heavy Duty Snatch Block View Product →
Horizontal Lifting Clamp View Product →
Lever Hoist / Lever Block View Product →
Manual Stacker View Product →
Scissor Lift Table View Product →
Semi-Electric Order Picker View Product →
Semi-Electric Stacker View Product →
Trolley View Product →
Vertical Lifting Clamp View Product →

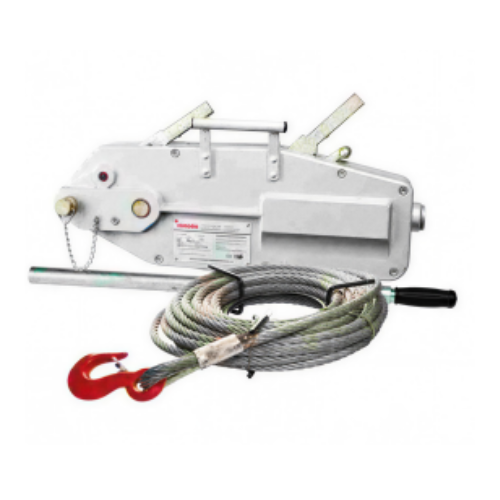

Wire Rope Winch View Product →View AllRigging Hardware
