Lifting Equipment

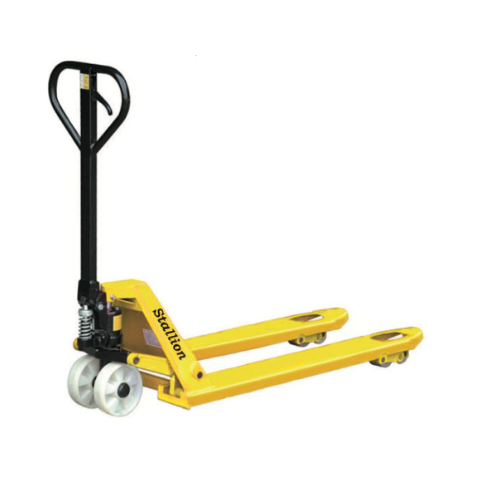

HAND PALLET TRUCK – CBG-I
-
Economic design, but big load capacity 3000 kgs.
-
Complete pump design with reliable leak-proof pump eliminating maintenance and extending the service time.
-
3 position hand control - raise, lower, neutral.
-
Fork lowering speed is controllable. Operated by hand control and foot pedal.
-
Entry/exit roller, more freely travel.
-
Conform to CN 1757-2, CE/GS/TUV, ISO9001:2000
-
Wheel type option: nylon, pu, rubber.
| ITEM | UNIT | CBG-I 20 | CBG-I 25 | CBG-I 30 |
|---|---|---|---|---|
| CAPACITY | KG | 2000 | 2500 | 3000 |
| OVERALL FORK WIDTH | MM | 520/550/685 | ||
| OVERALL FORK LENGTH | MM | 915/1100/1150/1220 | ||
| LOWERED FORK HEIGHT | MM | 85 | ||
| MAX.FORK HEIGHT | MM | 200 | ||
| STEERING WHEEL SIZE | MM | Φ180X50 | ||
| FORK WHEEL SIZE SINGLE | MM | Φ80X84 | ||
| FORK WHEEL SIZE TANDEM | MM | Φ80X60 | ||
| TURNING RADIUS | MM | 1210/1260/1330 | ||
| SERVICE WEIGHT | KG | 65-80 | ||
| WHEEL TYPE | NYLON / PU / RUBBER | |||
