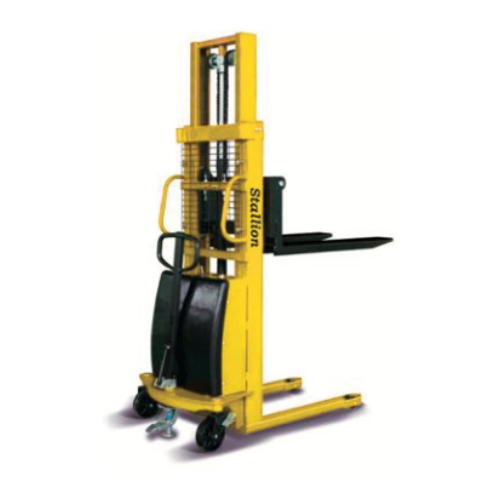

Semi-Electric Stacker
-
Handle-castor chain assist steering system make turning more easier.
-
Over-discharge protection device greatly prolongs the battery use time.
-
Equipped with explosion-proof valve, ensure no sharp drop of platform and prevent operator from harm.
-
Easy operating foot brake.
-
Conform to CN 1757-2, CE/GS/TUV, ISO9001:2000
| ITEM | UNIT | ESB10 | ESB15 |
|---|---|---|---|
| MOVEING TYPE | MANUAL | ||
| LIFTING TYPE | ELECTRIC MOTOR | ||
| LOAD CAPACITY | 1000 | 1500 | |
| MAX LIFTING HEIGHT | 1600/2000/2500/3000 | 1600/2000/2500 | |
| FORKS WIDTH | 320-695 | ||
| FORKS LENGTH | 1000 | ||
| MIN.FORK HEIGHT, LOWERED | 90 | 90 | |
| LOAD CENTER DISTANCE | 450 | 450 | |
| WHEELBASE | 1185 | 1260 | |
| OVERALL LENGTH | 1660 | 1660 | |
| OVERALL WIDTH | 850 | 850 | |
| OVERALL HEIGHT | 2040/1580/1835/2090 | 2080/1630/1875 | |
| TURNING RADIUS | 1350 | 1450 | |
| LIFTING SPEED, LOAD/UNLOAD | 10/15 | 10/15 | |
| LOWERING SPEED, LOAD/UNLOAD | 15/12 | 15/12 | |
| SERVICE BRAKE | Mechanical | Mechanical | |
| BATTERY VOLTAGE | 12/120 | 12/120 | |
| BATTERY WEIGHT | 25 | 25/30 | |
| WHEEL TYPE | Nylon | Nylon | |
| WHEEL SIZE, FRONT | Φ 80×60 | Φ 80×60 | |
| WHEEL SIZE, REAR | Φ 180×50 | Φ 180×50 | |
| SERVICE WEIGHT | 400/430/450/470 | 430/480/510 | |
