| ROPE SIZE IN MM |
CIR INCH | WEIGHT KGS/ MTR |

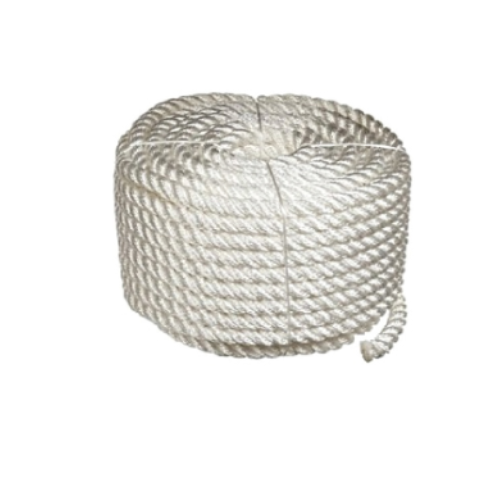

NYLON ROPE | ||||
|---|---|---|---|---|---|---|---|
| WEIGHT KGS/ 100 MTR |
WEIGHT KGS/ 200 MTR |
WEIGHT KGS/ 220 MTR |
BREAKING STRENGTH (TONS) |
BREAKING STRENGTH (kN) |
|||
| 4 | 5/32 | 0.01 | 1.05 | 2.10 | 2.31 | 0.35 | 3.48 |
| 6 | 1/4 | 0.02 | 2.25 | 4.50 | 4.95 | 0.74 | 7.37 |
| 8 | 1 | 0.04 | 4.00 | 8.00 | 8.80 | 1.40 | 13.2 |
| 10 | 1 1/4 | 0.06 | 6.30 | 12.60 | 13.86 | 2.10 | 20.3 |
| 12 | 1 1/2 | 0.09 | 9.00 | 18.00 | 19.80 | 3.00 | 29.4 |
| 14 | 1 3/4 | 0.12 | 12.30 | 24.60 | 27.06 | 4.10 | 40.2 |
| 16 | 2 | 0.16 | 16.00 | 32.00 | 35.20 | 5.30 | 51.9 |
| 18 | 2 1/4 | 0.20 | 20.30 | 40.60 | 44.66 | 6.70 | 65.6 |
| 20 | 2 1/2 | 0.25 | 25.00 | 50.00 | 55.00 | 8.30 | 81.3 |
| 22 | 2 3/4 | 0.30 | 30.30 | 60.60 | 66.66 | 10.00 | 98 |
| 24 | 3 | 0.36 | 36.00 | 72.00 | 79.20 | 12.00 | 117.6 |
| 26 | 3 1/4 | 0.42 | 42.30 | 84.60 | 93.06 | 13.80 | 135.2 |
| 28 | 3 1/2 | 0.49 | 49.00 | 98.00 | 107.80 | 15.80 | 154.9 |
| 30 | 3 3/4 | 0.56 | 56.30 | 112.60 | 123.86 | 17.80 | 174.5 |
| 32 | 4 | 0.64 | 64.00 | 128.00 | 140.80 | 20.00 | 196 |
| 34 | 4 1/4 | 0.72 | 72.30 | 144.60 | 159.06 | 22.30 | 218.6 |
| 36 | 4.5 | 0.81 | 81.00 | 162.00 | 178.20 | 24.80 | 243.1 |
| 38 | 4 3/4 | 0.90 | 90.30 | 180.60 | 198.66 | 27.30 | 267.6 |
| 40 | 5 | 1.00 | 100.00 | 200.00 | 220.00 | 30.00 | 294.1 |
| 44 | 5 1/2 | 1.21 | 121.00 | 242.00 | 266.20 | 35.80 | 350.9 |
| 48 | 6 | 1.44 | 144.00 | 288.00 | 316.80 | 42.00 | 411.7 |
| 52 | 6 1/2 | 1.69 | 169.00 | 338.00 | 371.80 | 48.80 | 478.4 |
| 56 | 7 | 1.96 | 196.00 | 392.00 | 431.20 | 56.00 | 549 |
| 60 | 7 1/2 | 2.25 | 225.00 | 450.00 | 495.00 | 63.80 | 625.4 |
