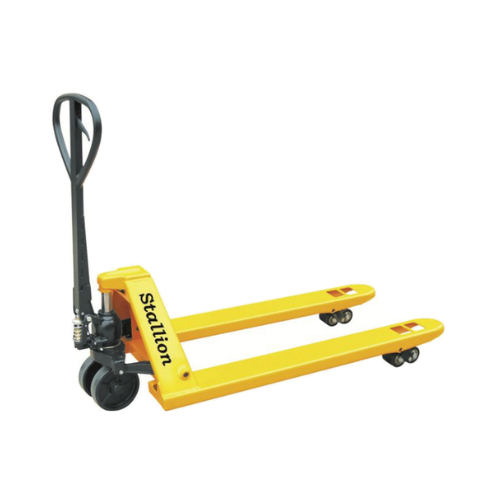

HAND PALLET TRUCK – HPW
-
High reliability and long service life of 5 years.
-
Double lifting speed when loads under 600 kg, which turns back to regular speed when above it.
-
The lifting system is equipped with overloading protection valve to ensure the safe operation.
-
The utilized structural design guarantees the convenience of assembling and disassembling.
-
High - weight fork frame, made from high rigidity steel plate.
-
Compact appearance, innovative separated rock arm, ensure the whole truck evenly pressed.
-
There is a finger hole in the connection of handle and pump, which os easy to assembly.
-
Conform to EN 1757-2.
-
| ITEM | UNIT | HPW |
|---|---|---|
| CAPACITY | KG | 5000 |
| OVERALL FORK WIDTH | MM | 550/685 |
| OVERALL FORK LENGTH | MM | 1150/1220 |
| LOWERED FORK HEIGHT | MM | 77 |
| MAX.FORK HEIGHT | MM | 195 |
| STEERING WHEEL SIZE | MM | Φ 180 |
| LOAD ROLLER SIZE TANDEM WHEELS | MM | Φ 75X80 |
| TURNING RADIUS | MM | 1370 |
| SERVICE WEIGHT | KG | 103 |
| WHEEL TYPE | NYLON |
