Lifting Equipment

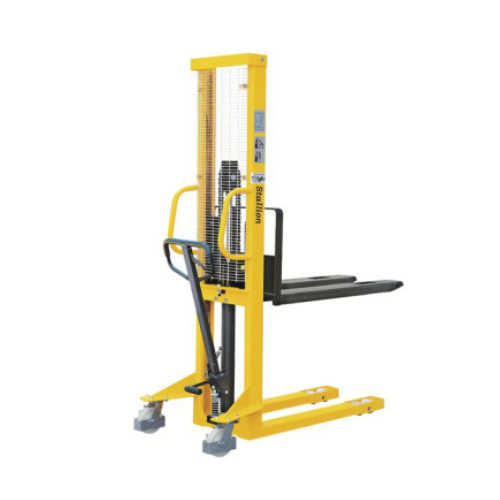

Manual Stacker
-
Rubust steel construction.
-
Sturdy and compact enough to fit enough standard doors and to operate in congested areas.
-
Regardless of loading weight, lifting speed always smoothly as same, no impact, safe to use.
-
The stacker can be lifted by handle or foot pedal.
-
Set the active safety valve to prevent overloading of use.
-
Conform to CN 1757-2, CE/GS/TUV, 1S09001:2000
| ITEM | UNIT | MSC500 | MSC1000 | MSC1500 | MSC2000 |
|---|---|---|---|---|---|
| CAPACITY | KG | 500 | 1000 | 1500 | 2000 |
| MAX.LIFTING HEIGHT | MM | 1600 | 1600/2000/2500 | 1600 | 1600 |
| HEIGHT, FORK LOWERED | MM | 80 | 90 | ||
| FORK LENGTH | MM | 800 | 900/1070 | ||
| FORK WIDTH | MM | 320-695 | |||
| LOAD CENTER | MM | 400 | |||
| TURNING RADIUS | MM | 1250 | 1400 | ||
| OVERALL LENGTH | MM | 1234 | 1325 | ||
| OVERALL WIDTH | MM | 820 | 1000/790 | 1000 | |
| OVERALL HEIGHT | MM | 1980 | 2080/1580/1830 | 2080 | 2080 |
| WHEEL TYPE | NYLON | ||||
