Slings

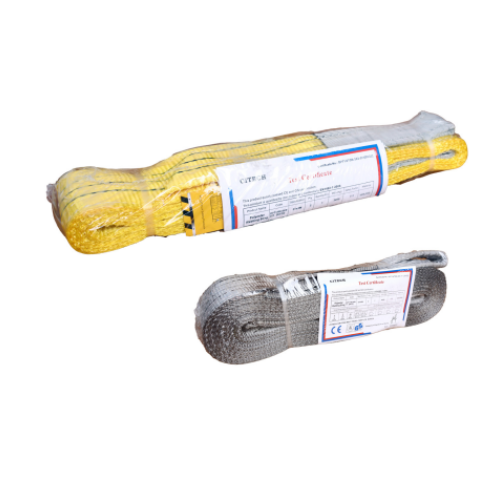

Webbing Slings
- Type: Double Ply Polyester Webbing Sling with Reinforced Lifting Eyes.
- Technical Specifications: Colour coded according to EN 1492-1 Safety Factor (SF) 7:1
- Characteristics: Low Elongation
- Norms: According to Machinery Directive 2006/42/EC and EN 1492-1
| REF. NO. | COLOR | W.L.L. (Kgs) |
WIDTH (mm) |
1.0 | 0.8 | 2.0 | 1.4 | 1.0 |
|---|---|---|---|---|---|---|---|---|
| DP71/RE/1 | 1,000 | 25 | 1,000 | 800 | 2,000 | 1,400 | 1,000 | |
| DP71/RE/2 | 2,000 | 50 | 2,000 | 1,600 | 4,000 | 2,800 | 2,000 | |
| DP71/RE/3 | 3,000 | 75 | 3,000 | 2,400 | 6,000 | 4,200 | 3,000 | |
| DP71/RE/4 | 4,000 | 100 | 4,000 | 3,200 | 8,000 | 5,600 | 4,000 | |
| DP71/RE/5 | 5,000 | 125 | 5,000 | 4,000 | 10,000 | 7,000 | 5,000 | |
| DP71/RE/6 | 6,000 | 150 | 6,000 | 4,800 | 12,000 | 8,400 | 6,000 | |
| DP71/RE/8 | 8,000 | 200 | 8,000 | 6,400 | 16,000 | 11,200 | 8,000 | |
| DP71/RE/10 | 10,000 | 250 | 10,000 | 8,000 | 20,000 | 14,000 | 10,000 | |
| DP71/RE/12 | 12,000 | 300 | 12,000 | 9,600 | 24,000 | 16,800 | 12,000 |
