| Type | S.W.L. (t) |
Sheave Dia. D(mm) |
Dimension (mm) | For Wire Dia (mm) |
N.W. (kg) |
|||
|---|---|---|---|---|---|---|---|---|

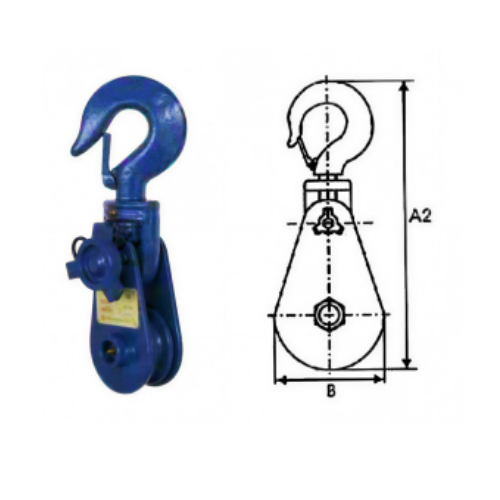

| A2(LH) | A2(LS) | B | C | |||||
| LH(LS)3″x1 | 2 | 75 | 292 | 286 | 82 | 70 | 7-9 | 4 |
| LH(LS)4-1/2″x1 | 4 | 115 | 358 | 345 | 120 | 70 | 10-12 | 6.1 |
| LH(LS)6″x1 | 4 | 150 | 412 | 399 | 160 | 70 | 16-18 | 13.8 |
| LH(LS)6″x1 | 8 | 150 | 498 | 475 | 160 | 93 | 20-22 | 14.4 |
| LH(LS)8″x1 | 8 | 200 | 549 | 528 | 210 | 93 | 20-22 | 16 |
| LH(LS)8″x1 | 15 | 200 | 672 | 663 | 230 | 102 | 22-24 | 24 |
| LH(LS)10″x1 | 10 | 250 | 695 | 679 | 260 | 115 | 24-26 | 37.5 |
| LH(LS)10″x1 | 12 | 250 | 701 | 679 | 260 | 115 | 24-26 | 42 |
| LH(LS)12″x1 | 12 | 300 | 797 | 767 | 310 | 133 | 24-26 | 56 |
| LH(LS)12″x1 | 15 | 300 | 797 | 884 | 310 | 133 | 26-28 | 65 |
| LH(LS)14″x1 | 22 | 355 | 960 | 952 | 365 | 140 | 28-32 | 90 |
| LH(LS)16″x1 | 22 | 400 | 1027 | 1019 | 415 | 140 | 28-32 | 108 |
| LH(LS)16″x1 | 30 | 400 | 1085 | 1126 | 415 | 155 | 32-35 | 135 |
| LH(LS)20″x1 | 30 | 500 | 1177 | 1256 | 514 | 162 | 32-35 | 210 |
| LH(LS)24″x1 | 50 | 600 | 1445 | 1525 | 625 | 240 | 46-50 | 408 |
