Lifting Equipment

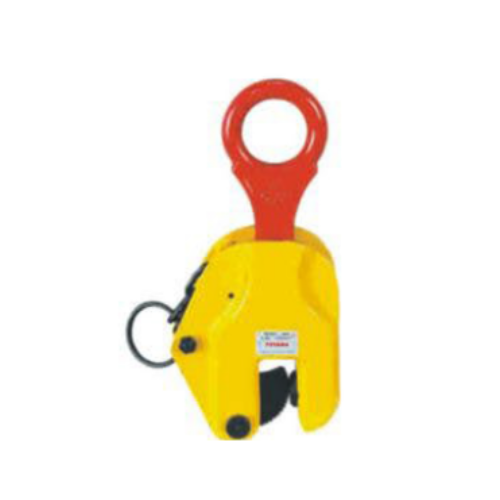

Vertical Lifting Clamp
- Japan model.
- Suitable for vertical lifting of steel plates and steel structures.
- Capacity: 0.8-20T. Made of high-quality low-carbon alloy steel.
- t is fitted with a locking device for both open and closed positions, which ensures complete safety. High-frequency quenching of die-forged special alloy steels enhance the strength and durability of the tooth plate.
- The working load is the capacity of one piece.
- It may be used singly or pairs of clamp used together.
- Do not crash the lifted cargos during the lifting and transfer period.
| Model | Working Load (kg) |
Test Load (kg) |
Opening Size (mm) |
Net Weight (kg) |
|---|---|---|---|---|
| JCD-0.8 | 800 | 1600 | 0-16 | 2.8 |
| JCD-1.0 | 1000 | 2000 | 0-22 | 4.2 |
| JCD-2.0 | 2000 | 4000 | 0-25 | 5.5 |
| JCD-3.2 | 3200 | 6400 | 0-35 | 9.5 |
| JCD-5.0 | 5000 | 10000 | 0-50 | 16 |
| JCD-8.0 | 8000 | 16000 | 0-60 | 23 |
| JCD-10 | 10000 | 15000 | 0-80 | 33 |
| JCD-12 | 12000 | 18000 | 20-90 | 37 |
| JCD-16 | 16000 | 24000 | 40-100 | 46 |
| JCD-20 | 20000 | 30000 | 60-120 | 76 |
