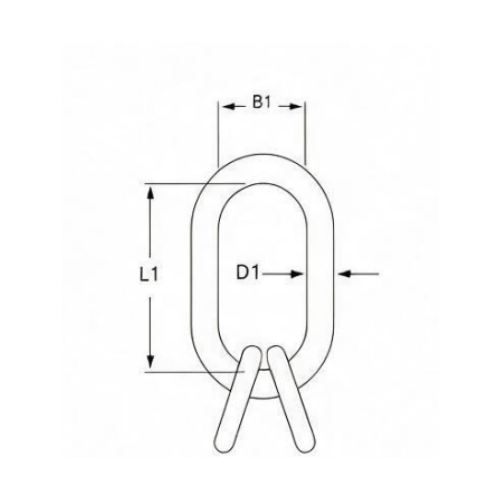

| Part No. | D 1 mm |
L 1 mm |
B 1 mm |
D 2 mm |
L 2 mm |
B 2 mm |
W.L.L. Tonnes |
Minimum Factor of Safety |
Weight Kgs/each |
|---|---|---|---|---|---|---|---|---|---|
| Q16B | 16 | 120 | 70 | 13 | 95 | 51 | 4.1 | 4.0 | 1.2 |
| Q20B | 20 | 170 | 90 | 16 | 120 | 70 | 6.5 | 4.0 | 2.5 |
| Q22B | 22 | 170 | 90 | 20 | 150 | 80 | 8.2 | 4.0 | 2.8 |
| Q22B8 | 22 | 270 | 140 | 16 | 120 | 70 | 5.8 | 4.0 | 3.5 |
| Q25B | 25 | 190 | 100 | 20 | 150 | 80 | 10.7 | 4.0 | 4.9 |
| Q28B | 28 | 210 | 110 | 22 | 170 | 90 | 12.9 | 4.0 | 6.4 |
| Q32B | 32 | 270 | 140 | 25 | 190 | 100 | 17.1 | 4.0 | 10.0 |
| Q38B | 39 | 270 | 140 | 32 | 270 | 140 | 28.1 | 4.0 | 18.2 |
| Q45B | 45 | 320 | 170 | 38 | 270 | 140 | 38.3 | 4.0 | 27.7 |
| Q50B | 50 | 380 | 200 | 38 | 270 | 140 | 45.0 | 4.0 | 33.2 |
| Q60B | 60 | 430 | 220 | 50 | 380 | 200 | 65.3 | 4.0 | 54.0 |
| Q70B | 70 | 500 | 250 | 60 | 430 | 220 | 84.4 | 4.0 | 101.2 |
-
